Indoor LED Rental Screen: High Quality and Easy Installation

PRODUCT PARAMETERS

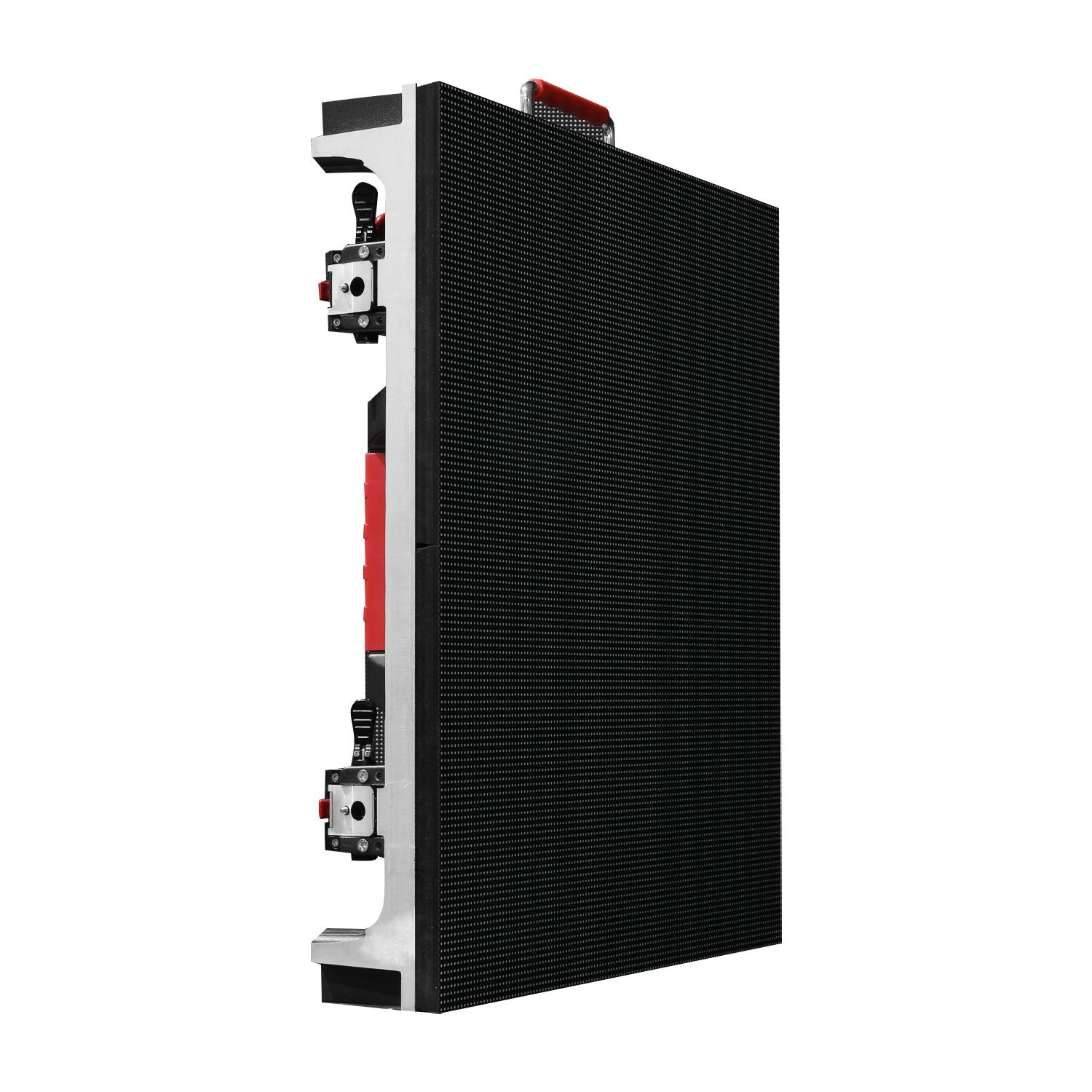

The Indoor LED Rental Screen adopts an integrated high-strength frame design, with a modular design for the box, module, and power supply. Widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, and other venues.
Description
FAQs
Request A Quote

Description

A Brief Introduction to Indoor LED Rental Screen

The Indoor LED Rental Screen adopts an integrated high-strength frame design, with a modular design for the box, module, and power supply. Widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, and other venues.

Features of Indoor LED Rental Screen

  • Slim and lightweight: One-piece simple frame design, lightweight.
  • Multi-functional splicing: can be customized curved splicing, straight screen splicing, to achieve more artistic shapes;
  • Quick installation: intelligent quick locking device, single person disassembly, fast and convenient installation;
  • Easy maintenance: modular design, modules before and after maintenance, center control box, independent disassembly;
  • Anti-bump design: the box is equipped with corner guards to protect the LED screen.

Specifications of Indoor LED Rental Screen

Module NoP1.9P2.6P2.9P3.9P4.8
Pixel StructureSMD1515SMD1515SMD2121SMD2121SMD2121
Pixel Pitch1.953mm2.604mm2.976mm3.91mm4.81mm
Module Resolution128*12896*9684*8464*6452*52
Module Size250mm*250mm250mm*250mm250mm*250mm250mm*250mm250mm*250mm
Cabinet Size500mm*1000mm500mm*1000mm500mm*1000mm500mm*1000mm500mm*1000mm
Cabinet Resolution256*512192*384168*336128*512104*208
Cabinet Weight5000∶1≤15 kg/panel≤15 kg/panel≤15 kg/panel≤15 kg/panel
Pixel Density262144 dots/㎡147456 dots/㎡112896 dots/㎡65536 dots/㎡43264 dots/㎡
White Balance Brightness600~800 nits600~800 nits600~800 nits600~800 nits600~800 nits
Horizontal Viewing Angle140°140°140°140°140°
Vertical Viewing Angle120°120°120°120°120°
Contrast Ratio5000 ∶ 15000∶15000 ∶ 15000∶15000∶1
Max Power Consumption≤480W/㎡≤400W/㎡≤400W/㎡≤480W/㎡≤420W/㎡
Average power consumption≤200W/㎡≤160W/㎡≤160W/㎡≤180W/㎡≤160W/㎡
Power Supply Requirements4.2-5.0V4.2-5.0V4.2-5.0V4.2-5.0V4.2-5.0V
Drive ModeConstant current drive 32 scanConstant current drive 24 scanConstant current drive 21 scanConstant current drive 16 scanConstant current drive 13 scan
Frame Frequency50&60 Hz50&60 Hz50&60 Hz50&60 Hz50&60 Hz
Refresh Rate≥3840 Hz≥3840Hz≥3840Hz≥3840Hz≥3840 Hz
Theoretical Lifespan100000hours100000 hours100000 hours100000 hours100000 hours
Working Temperature Range-10℃ ~ 40℃-10℃ ~ 40℃-10℃ ~ 40℃-10℃ ~ 40℃-10℃ ~ 40℃
Storage Temperature Range-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃
Working Humidity Range10 — 80%RH  No condensation10 — 80%RH  No condensation10 — 80%RH  No condensation10 — 80%RH  No condensation10 — 80%RH  No condensation
Storage Humidity Range10 — 85%RH  No condensation10 — 85%RH  No condensation10 — 85%RH  No condensation10 — 85%RH  No condensation10 — 85%RH  No condensation

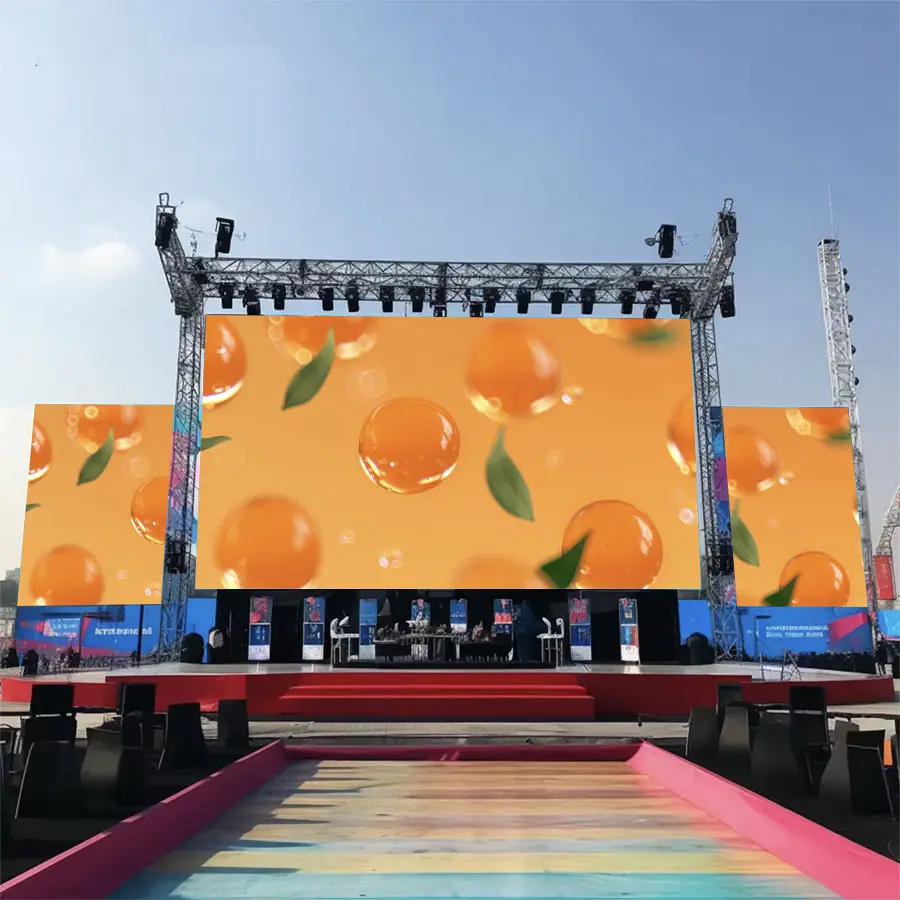

Application of Indoor LED Rental Screen

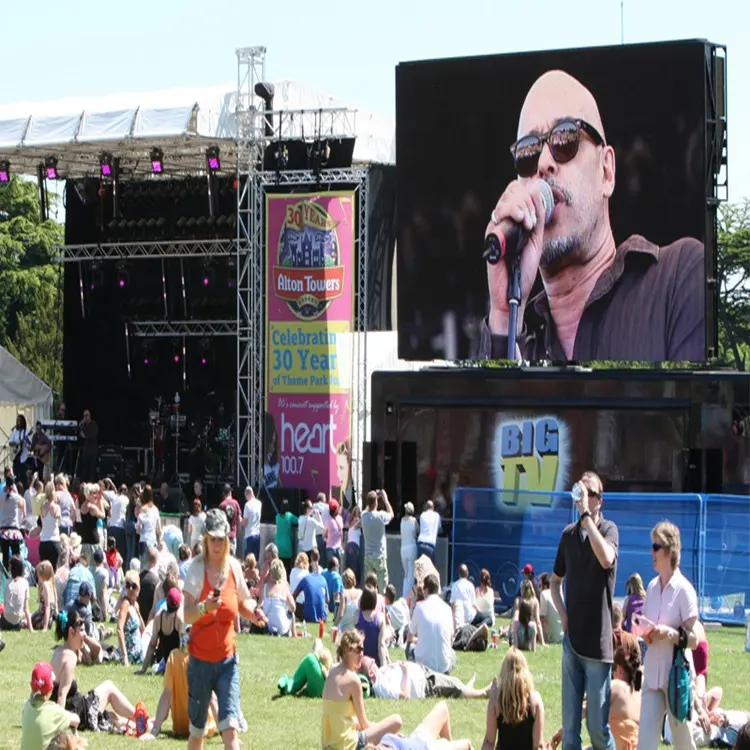

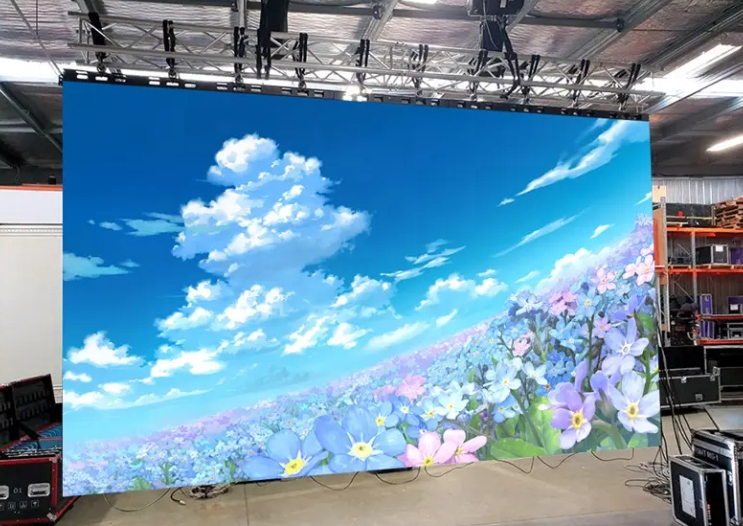

Indoor LED Rental Screen is mainly used for a variety of temporary activities and occasions, such as concerts, exhibitions, conferences, etc., according to the need to build and dismantle at any time.

Package of Indoor LED Rental Screen

Carton Box, Wooden CrateFlight Case, etc.

Precautions of Indoor LED Rental Screen

  • For product installation, please refer to the “Display Installation Manual.”
  • When unpacking the product, please refer to the packaging and transportation diagram; take out the product; please handle it with care and pay attention to safety!
  • The product is a strong power input, please pay attention to safety when using it!
  • The ground wire should be safely connected to the ground with reliable contact, and the ground wire and zero wire should be isolated and reliable, and the access to the power supply should be far away from the high-power electrical equipment.
  • Frequent power switch tripping, should be timely check and replace the power switch.
  • The product can not be closed for a long time, it is recommended to use once every half month, 4 hours of power; in high humidity environment, it is recommended to use once a week, 4 hours of power.
  • If the screen has not been used for more than 7 days, the preheating method should be used every time. The screen is lit: 30%-50% brightness is preheated for more than 4 hours, then adjusted to normal brightness 80%-100% to light up the screen body, and the moisture will be excluded, so that no abnormalities in use.
  • Avoid turning on the LED TV in full white state, because the inrush current of the system is the largest at this time.
  • Dust on the surface of the LED display unit can be gently wiped with a soft brush.

Company Profile

  • Shenzhen Zhongxian Beixin Technology Co., Ltd. is a high-tech company, which is located in Shenzhen, Guangdong province, specializing in the research and development, production, marketing, and professional services of LED application products, and providing various indoor & outdoor LED display, rental LED display, LED module, LED panel, intelligent all-in-one LED display, transparent LED display and integrated solutions for control room, commercial advertising, architectural industries, stadiums, church and many other applications. Our products can meet different point distance, visual distance, brightness and environmental requirements.
  • Besides, the products also have passed CCC, FCC, CE, ROHS etc. certificate for global market, and other international standard certification, product and enterprise qualification certification, product test report and patent certificates are complete.
  • We stick to the principle of quality and service first, continuously improve and innovate our products to meet the diverse needs of customers and dedicate to creating a more colorful and brighter world.
  • If you need a high-quality LED display, please feel free to contact us. You can click on the product to contact us. (https://www.leyardleddisplay.com/contact-us/)
  • Exhibition Hall of Made-in-China.com: https://zxbx371.en.made-in-china.com/

Payment Term

T/T, Western Union, Paypal, Credit Card, etc.

Shipment Term

By air, by sea, by express, as customers request.

FAQs of Indoor LED Rental Screen

Q: What is the lifespan of the LED Rental Screen?
A: Lifespan may vary, but the high-quality LED rental screen can last over 100,000 hours.

Q: How to install the LED Rental Screen?
A: Installation usually consists of securing the bracket, mounting the modular screen on a flat surface in a sequential manner, connecting the power and signal cables, and finally just performing power-on tests and adjustments. It is recommended to follow the manufacturer’s instructions or hire a professional to perform the installation.

Q: Is it easy to install the LED rental screen?
A: Yes, it is very convenient. The rental screen adopts a quick lock design, which allows one person to quickly complete the splicing. The installation and disassembly time is short, which is suitable for temporary construction scenes such as stages and concerts.

Q: Can LED rental screens be spliced ​​in curved shapes?
A: Yes, some rental screens support ±15° arc splicing, which can be used for creative display needs such as curved stages and exhibitions.

Q: Does the LED rental screen support high refresh rates? Will there be scan lines when live streaming or filming?
A: Our rental LED screens usually have a refresh rate of 3840Hz or higher, ensuring no scan lines and smoother images during live broadcasts and filming.
